What is the difference between deep drawing vs stamping? In the world of manufacturing, deep drawing and stamping are two critical processes used to shape metal parts, each with its unique characteristics, advantages, and applications. Understanding these distinctions can significantly impact production efficiency and product quality. Both techniques are widely used in various industries, including automotive, aerospace, and consumer goods. This article will explore the deep drawing vs stamping debate, providing insights into each process and their practical applications.
Deep drawing is a metal forming process that pulls a flat sheet of metal into a die to create a three-dimensional shape, ideal for producing deep, hollow components with uniform thickness. In contrast, stamping is a process that shapes metal sheets into desired forms, often associated with high-volume production due to its speed and efficiency.
By the end of this article, you will have a comprehensive understanding of both methods and be better equipped to choose the right one for your specific manufacturing needs.
Deep Drawing vs Stamping: Techniques and Applications
What is Deep Drawing?

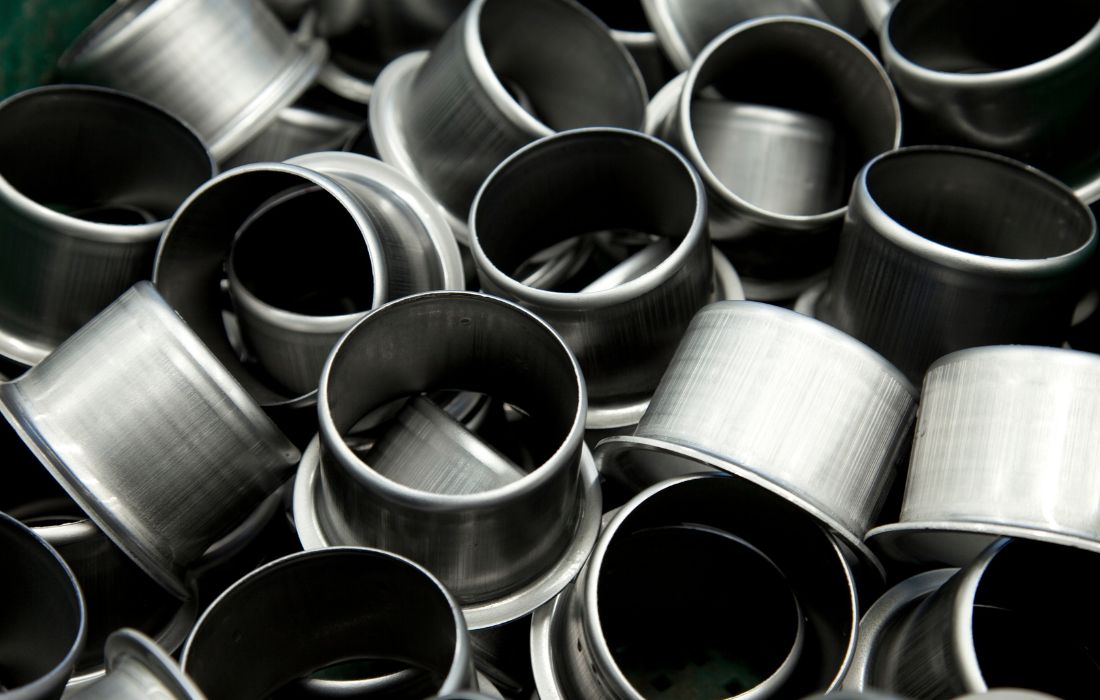

Deep drawing is a process where a metal sheet is gradually formed into a desired shape by being drawn into a die cavity. This technique is particularly useful for producing complex shapes that require significant depth, such as cups, cans, and other hollow components. The process begins with a flat sheet of metal, usually referred to as a blank.
Steps Involved in Deep Drawing
Blank Preparation: The first step involves cutting the metal sheet into the appropriate size. The sheet must be free of defects to ensure a smooth drawing process.
Lubrication: To minimize friction between the metal and the die, a lubricant is applied. This is crucial for preventing tearing or wrinkling during the drawing process.
Drawing Process: The blank is placed over the die, and a punch presses down, pulling the metal into the die cavity. This stage requires careful control of the force and speed to avoid deformation.
Trimming: After the metal has been drawn into the desired shape, any excess material is trimmed away to achieve the final dimensions.
Finishing: The final product may undergo additional processes such as surface treatment or coating, depending on the application.
Applications of Deep Drawing vs Stamping
What’s the difference between deep drawing vs stamping? Deep drawing is widely used in various industries. Common applications include:
Automotive Components: Parts like fuel tanks, engine covers, and chassis components are often made using deep drawing techniques due to their complex shapes and structural integrity. For example, many manufacturers have reported that switching to deep drawing for fuel tanks has improved durability and reduced weight, leading to better fuel efficiency.
Household Items: Kitchenware such as pots, pans, and cans are frequently produced through deep drawing, taking advantage of the method’s ability to create uniform wall thickness.
Aerospace Parts: The aerospace industry requires precise and lightweight components, making deep drawing an excellent choice for producing parts like housing for instruments and fuel tanks.
Stamping Explained: Methods, Materials, and Uses
What is Stamping?
Stamping is a manufacturing process that converts flat metal sheets into specific shapes using dies and presses. Unlike deep drawing, which focuses on creating deep, hollow shapes, stamping is primarily used for producing flat parts or relatively shallow components. Deep drawing vs stamping can include various operations, such as cutting, bending, and embossing.
Types of Stamping Processes
Blanking: This is the first stage of stamping, where a die cuts out the desired shape from a sheet of metal. The remaining material is discarded.
Piercing: Similar to blanking, piercing involves creating holes in the metal sheet for various purposes, such as facilitating assembly or reducing weight.
Bending: This operation involves reshaping the metal to create angles or curves without cutting through the material.
Forming: Forming is used to create three-dimensional shapes from flat sheets by applying pressure with a die.
Materials Used in Stamping
Stamping can be performed on a wide variety of metals, including:
- Steel: Commonly used due to its strength and versatility.
- Aluminum: Lightweight and corrosion-resistant, making it ideal for automotive and aerospace applications.
- Copper: Often used for electrical components due to its excellent conductivity.
Applications of Stamping
The stamping process is widely utilized across various sectors. Notable applications include:
Automotive Industry: Stamping is extensively used to produce body panels, chassis components, and brackets. Manufacturers often use stamping for mass production, enabling them to produce thousands of parts quickly and efficiently.
Electronics: Components such as connectors, housings, and brackets are often stamped for their precise dimensions and cost-effectiveness.
Construction: Stamped metal is commonly used for roofing, siding, and various structural elements.
Key Differences: Deep Drawing vs Stamping
Process Characteristics
One of the most significant differences between deep drawing vs stamping lies in the nature of the processes:
| Feature | Deep Drawing | Stamping |
| Depth | Designed for deep, hollow shapes | Primarily for flat or shallow parts |
| Material Movement | Material pulled and stretched into die | Material cut or pressed into shape |
Material Thickness and Type
Material Thickness: Deep drawing typically requires thicker materials to withstand the drawing process without tearing. Stamping can work with a range of material thicknesses, often using thinner sheets.
Material Types: While both processes can utilize various materials, deep drawing is often preferred for ductile metals that can deform without breaking, whereas stamping can accommodate harder and less ductile metals.
Production Speed and Cost
Speed: Stamping is generally faster than deep drawing, making it more suitable for high-volume production runs. The quick cycle times in stamping allow manufacturers to produce thousands of parts in a short amount of time.
Cost: The initial setup costs for deep drawing can be higher due to the need for more complex dies and tooling. However, for low-volume production of complex shapes, deep drawing may be more cost-effective than stamping.
Final Product Characteristics
Surface Finish: Deep drawing often requires additional finishing processes to achieve a smooth surface, while stamping can produce parts with a good surface finish directly from the die.
Precision and Tolerance: Stamping typically offers higher precision and tighter tolerances than deep drawing, making it the preferred choice for applications requiring exact dimensions.
Choosing the Right Method for Your Project: Factors to Consider
When deciding between deep drawing vs stamping, several factors must be taken into account to ensure you choose the best method for your project’s needs.
Project Requirements
Complexity of Design: If your project requires complex, three-dimensional shapes, deep drawing is the ideal choice. For simpler designs or flat components, stamping may be more appropriate.
Volume of Production: Consider the production volume. Stamping is often more cost-effective for high-volume production due to its speed. Deep drawing, while slower, may be more suitable for low to medium volumes of specialized parts.
Material Considerations
Material Type: Assess the type of material you plan to use. Ductile metals are better suited for deep drawing, while stamping can accommodate a wider variety of materials.
Material Thickness: Evaluate the thickness of the metal sheets. Thicker materials may require deep drawing, whereas thinner sheets can be effectively processed through stamping.
Cost Analysis
Initial Setup Costs: Consider the initial investment in dies and tooling. Deep drawing processes may require higher setup costs, while stamping processes can be more economical for high volumes.
Long-term Production Costs: Analyze the long-term costs associated with each method, including labor, maintenance, and material waste.
Quality and Tolerance Requirements
Precision Needs: If your project demands high precision and tight tolerances, stamping is often the better choice. Deep drawing may introduce more variability in dimensions.
Surface Finish: Consider the desired surface finish of the final product. Stamping can produce a good surface finish, whereas deep drawn parts may require additional processing.
In summary, understanding the differences between deep drawing vs stamping is crucial for any manufacturer or designer looking to optimize their production processes. Both techniques have their strengths and weaknesses, and the choice between them depends on the specific requirements of your project. By carefully considering factors such as design complexity, production volume, material type, and cost, you can make an informed decision that aligns with your manufacturing goals.
Whether you choose deep drawing for its ability to create intricate shapes or stamping for its speed and efficiency, both methods play essential roles in the manufacturing industry. By leveraging the appropriate technique, you can enhance product quality, reduce production costs, and meet the evolving demands of your customers.
